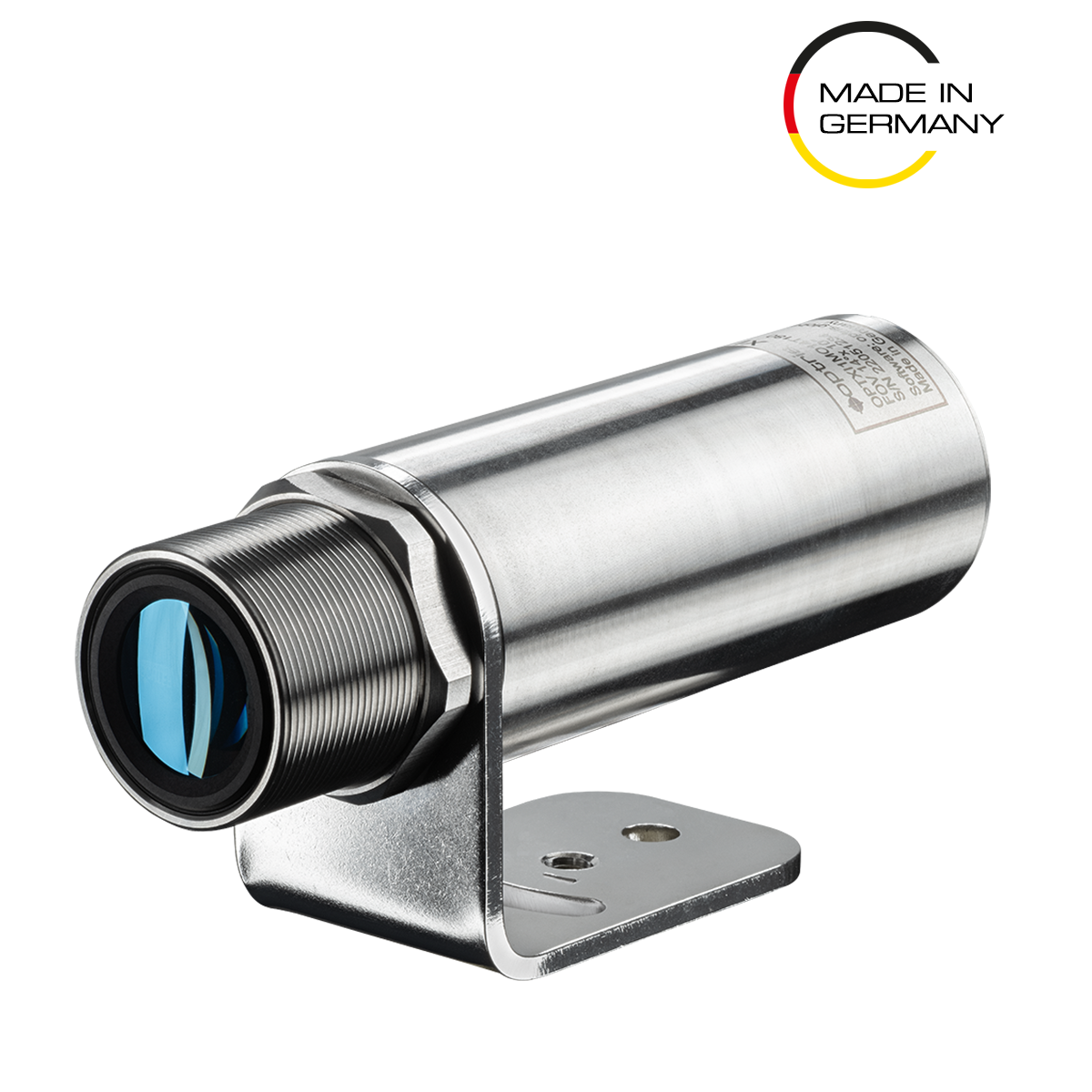

Xi 1M ETH

The Optris Xi 1M is a short-wavelength infrared camera designed for non-contact thermal imaging of complex industrial materials. Operating within the 0.85 to 1.1 μm spectral range, the device captures precise surface temperature data for materials such as steel, iron, brass, copper, tin, carbon, ceramics, and semiconductors. The Optris Xi 1M meets the requirements of demanding industrial applications by providing broad temperature measurement ranges, high accuracy, and configurable field-of-view options.

Non-reflective materials typically exhibit high and stable emissivity across long-wave infrared spectral ranges, regardless of surface texture. In contrast, metallic and reflective materials display low emissivity at long infrared wavelengths, which leads to inconsistent and unreliable temperature measurements.

The short-wavelength spectral range of the Xi 1M infrared camera aligns with the peak emissivity of most metallic materials, enabling accurate remote temperature measurement. According to Planck’s radiation law, short wavelengths result in greater infrared radiation emission, which reduces the impact of emissivity variations on measurement repeatability. Consequently, short-wavelength infrared cameras are preferred for contactless temperature measurement of reflective materials at elevated temperatures. The Xi 1M also features autonomous thermal hot spot detection, increasing its effectiveness in monitoring and inspection tasks. Manufactured in Germany, the Xi 1M demonstrates superior precision, accuracy, and repeatability compared to long-wavelength infrared cameras in industrial applications.

The Xi 1M thermal camera provides mid-resolution thermal imaging at 396 by 300 pixels, supporting temperature measurements from 450°C to 1800°C without the need for sub-ranges. Its high distance-to-spot-size ratio enables accurate temperature data collection from significant distances, exceeding the optical performance of contemporary pyrometers. The motorized focus function allows for precise remote adjustment of the focal point on measurement targets.

The industrial-grade construction of the Optris Xi 1M ensures reliable operation in challenging industrial settings. Its compact, durable, and waterproof design supports both fixed and mounted installations, providing consistent performance in various manufacturing environments.

The Optris Xi 1M uses Ethernet as its primary interface, supporting a 20 Hz frame rate for full-size images. A USB interface is available for sub-images of 132 by 100 pixels at the same frame rate. Autonomous operation reduces the need for extensive software development, facilitating integration into control systems. Additional features include automatic spot detection, direct analog output (0/4-20mA), and compatibility with industrial fieldbus protocols such as Ethernet/IP, Modbus TCP/IP, RS485, and Profinet. The autonomous mode at 20 Hz for sub-images further streamlines integration into industrial machinery.

In addition, the Optris Xi1M offers access to more complex software functionalities, such as line scanning or image merging through the PIX Connect software license. PIX Connect is indispensable. The Optris Xi 1M provides advanced software functionalities, including line scanning and image merging, accessible through the PIX Connect software license. PIX Connect supports thermal image processing and temperature data collection. Developer kits are available for integrators creating application-specific software solutions, from manufacturing processes to condition monitoring, research, and development activities. The Xi 1 M’s flexibility ensures seamless integration into various industrial setups, enhancing the camera’s adaptability to specific requirements. With its advanced features, the Optris Xi 1M sets a new standard for fixed-install infrared imaging, offering a cost-effective and powerful solution for diverse industrial applications.

Moreover, the infrared camera Xi 1M is compatible with an extensive range of accessories tailored for harsh environmental conditions. These accessories include a water-cooled housing. The Xi 1M infrared camera is compatible with a range of accessories designed for use in harsh environments. These include a water-cooled housing that extends the operating temperature range to 250°C and air blades that maintain lens cleanliness in dusty conditions. Additional accessories include mechanical mounting options, electrical interfaces, and connection cables.

Thermography software optris PIX Connect is included and license-free.All infrared cameras are delivered with the thermography software optris PIX Connect, developed specifically for the extensive documentation and analysis of thermal images. The Windows-based PIX Connect software enables users to tailor the infrared cameras to meet specific requirements. It analyses live and recorded temperature data and triggers alarm signals for process integration.The key to leveraging the Optris infrared camera is a correct configuration. This includes detailed device-specific configurations such as frame rate, measurement range adjustments, external communication settings, and USB/Ethernet configurations. Moreover, PIX Connect facilitates firmware updates and the download of configuration files over the Internet. PIX Connect Optris offers several different SDKs for our Xi and PI thermal imaging cameras. Depending on the operating platform, the infrared camera, the coding language, and the hardware platform, different software interfaces can be utilized: SDK The Optris IRmobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared camera‘s field of view or adjusting the configuration. The app analyzes the connected infrared camera‘s live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

Can I trust the temperature measurement of a single pixel?

Due to the diffraction-limited nature of infrared optics, the optical resolution and image quality are physically limited. As the dimensions of the individual pixels are in the same range as the infrared wavelength, users shall ensure that the target is larger than the camera’s MFOV.

What is the speed of the Xi 1M thermal camera in autonomous operation?

20 Hz, 500 Hz in line scanning operation

How do I configure the IP addresses for the Xi 1M thermal cameras?

Use the PIXConnect software to configure Ethernet settings and the autonomous mode.

Does the thermal camera support DHCP in the Ethernet mode?

No, the thermal camera must be assigned to a static IP address.

Do I need software to run the infrared camera?

No, the infrared camera can operate independently of a computer. However, for setup and configuration, the software PIXConnect is necessary.

Can I use the Xi1M with metals?

Yes. The Xi1M thermal camera is especially designed and optimized for hot metal objects.

How do I focus the camera?

The motorized focus can be set with the PIXConnect software. In the PIXConnect software, click on the “distance” button in the toolbar and use the slider.

Where is the Xi 1M thermal camera made, and does it contain memory components sourced from outside the U.S. or the European Union?

The Xi 1M is designed, manufactured, and calibrated in Berlin, Germany. Some electronic components may be sourced from outside the EU or the US. Still, it is important to note that the Xi 1M does not store any thermal images or temperature values in non-volatile memory. The Xi 1M thermal camera only stores full thermal images, thermal video (.ravi files), and temperature values in the customer PC hosting the PIX Connect software necessary to operate the camera. The thermal camera uses memory components inside the thermal camera electronics, which may be sourced outside the EU or the US to store a reference picture (also called dark picture) of the non-uniformity correction paddle or flag and some reference temperatures used to correct temperature drift. All these memory elements are deleted when the power to the camera head is terminated.

Can the Xi 1M thermal camera operate without a connection to a computer?

The Xi 1M thermal camera can calculate the temperature autonomously without a computer. The temperature data can either be transmitted via the USB or Ethernet interface or output via the process interface. Fieldbus communication is also available.

Can the Xi 1M thermal camera send temperature information from spots or areas to my PLC?

The Xi 1M thermal camera can send temperature information or temperature alarms from the Process Interface connection on the back of the camera. A cable with integrated electronics and a terminal block is included with the camera. It can be programmed in PIX Connect software as an Analog Input (AI) and Digital Input (DI) to control the thermal camera or as an Analog Output (AO) to control the process. The signal level is always 0-10 V (DI = 24 V). An optional industrial process interface is also available, delivering up to three independent temperature values or alarms to a user-supplied PLC. USB-RS485 adapters are available for applications with output requirements for more than three areas.

Is the infrared camera long-wave (LWIR), mid-wave (MWIR), or short-wave (SWIR)?

Optris infrared cameras are available in multiple spectral ranges, with model-specific frame rates and interface options. The Xi 1M uses SWIR and uses Ethernet.

Which industrial Ethernet/protocol kits are available for Xi 1M?

The following digital interface kits are available: Ethernet TCP/IP / Modbus TCP interface kit, EtherNet/IP interface kit, PROFINET kit.

What is the IFOV (instantaneous field of view/pixel size) for a given camera and lens?

The IFOV for each camera and optic is provided by the optics calculator in the Optris IR Camera Calculator.

What is the bit depth of the camera data?

The camera temperature data is based on 14-bit information. The data stream is transported in a 16-bit format, with 14 bits used for temperature data and 2 bits unused.

For steelmaking processes, should long-wave, near-infrared, or short-wave infrared models be selected?

For steelmaking processes, short-wave (lower wavelength) models are recommended. Suitable models include PI1M, PI08M, PI05M, Xi1M, and Xi05M. The lowest feasible wavelength / spectral range is recommended.

Which infrared camera is best suited for measuring welding temperatures?

Camera selection depends on the welding process and the required temperature range. For plastic welding, an LWIR PI/Xi LT camera can be used.
For metal welding (e.g., steel applications), short-wavelength models (PI1M, PI08M, PI05M, Xi1M, Xi05M) should be used. For laser welding, models with an appropriate blocking filter are available.

What are the associated part numbers for this product?

OPTXI1MO7SFT180, OPTXI1MO7CFT180, OPTXI1MO14T180, OPTXI1MO28T180

What is the bit depth of our camera?

The bit depth of our cameras is 14 bit. The data has 16 bit but only 14 bit are used for the Temperature Data and the other 2 bits are not used

Can we send the raw ADU data from the camera to another commercial software for processing?

As a rule, we do not disclose any information about raw data. The only option is to use the Connect SDK to output the camera’s ADU values as a matrix. However, these ADU values are uninterpreted. The cameras can send the temperature information and the color information to another commercial software for processing.

Does changing the mode from Temperature to ADU in the Connect SDK change the way that the image is displayed?

No, the way the image is displayed does not Change. You can see this in the software examples provided with the PIXConnect software (See the menu HELP => Connect SDK => Examples). Under the configuration menu => External communication => ConnectSDK. You can change the mode from “Temperatures” to “ADU”. This has no influence on the displayed image.

Our company designs and supplies camera systems for steelmaking processes and is exploring different camera types. For this application, would you recommend long-range, near-infrared, or short-wave infrared models?

For steelmaking processes we recommend short-wave infrared cameras as the PI 1M camera, PI 08M camera, PI05M camera , Xi1M camera or Xi 05M camera. Use the lowest wavelength / spectral range as possible!

After connecting the Optris Xi410 to PIX Connect via Ethernet, I get a “frame timeout” error and the infrared image doesn’t appear at all. The camera has the correct IP address and responds to ping. What could be causing this?

Go to Settings/Camera or via search and type in „camera“ and then activate the button “allow apps to access your camera”.

Which Optris infrared cameras support integration with machine learning frameworks? Do they provide raw thermal image data access via SDK/API (e.g., the OTC SDK), allowing developers to apply custom ML models for tasks like segmentation, classification, or predictive thermal analysis?

The IR cameras do not provide any raw thermal image data access. You get the temperature data via the SDK (OTC SDK) from the camera to your process.

Which Optris infrared camera is best for measuring temperatures during welding processes?

• The choose of the correct Optris infrared camera depends on the temperature range and the type of the welding process.
• For plastic welding , a PI/Xi LT camera can be used (8-14 µm)
• For metal (e.g. steel applications) a short wavelength camera PI 1M/08M/05M , Xi 1M , Xi05M should be used (0.85-1.1 µm , 780-820 µm , 500-540 µm)
• For laser welding applications Optris provides IR cameras with a blocking filter.

Is your infrared camera long-wave (LWIR) or short-wave (SWIR/MWIR)? What’s the typical frame rate? What’s the IFOV (instantaneous field of view / pixel size)? And does it connect to a PC via USB, or what other platforms/interfaces are supported (e.g., Ethernet, etc.)?

Optris provides different types of IR cameras with different wavelengths. Here you can find an overview of the different camera types regarding the spectral ranges, the typical frame rates and the interface versions (USB or Ethernet (ETH)):

Long-wave (LWIR) cameras (spectral range 8-14 µm):

• PI400i LT (80Hz, switchable to 27 Hz)
• PI450i LT (80Hz, switchable to 27 Hz)
• PI640i LT (32 Hz, 640×120 px @ 125 Hz)
• Xi80 LT ETH (50 Hz)
• Xi400 LT USB (80Hz, switchable to 27 Hz)
• Xi410 LT ETH (25 Hz connected via Ethernet, 4 Hz connected via USB)
• Xi640 LT USB (32 Hz)

Long-wave (LWIR) cameras (spectral range 7.9 µm):

• PI450iG7 (80Hz, switchable to 27 Hz)
• PI640iG7 (32 Hz, 640×120 px @ 125 Hz)

Middle-wave (MWIR) cameras (spectral range 3.9 µm):

• Xi320MT (30 Hz)

Short-wave (SWIR) cameras:

• PI1M (0.85–1.1 µm), 32 Hz (382×268 px @ 80 Hz, switchable to 27 Hz / 72×56 px / 764×8 px @ 1 kHz)
• PI08M (780–820 nm), 32 Hz (382×268 px @ 80 Hz, switchable to 27 Hz / 72×56 px / 764×8 px @ 1 kHz)
• PI05M (500–540 nm), 764×480 px @ 32 Hz / 382×288 px @ 80 Hz (switchable to 27 Hz) / 72×56 px / 764×8 px @ 1 kHz
• Xi1M ETH (0.85–1.1 µm), 396×300 px, 20 Hz, 396×8 px (autonomous: 396×1 px), 500 Hz, Ethernet, USB 2.0 (20 Hz only), autonomous operation
• Xi05M ETH (500–540 nm), 396×300 px, 20 Hz, 396×8 px (autonomous: 396×1 px), 500 Hz, Ethernet, USB 2.0 (20 Hz only), autonomous operation

The following digital interface kits are available for the Xi 80 / 410 / 05M / 08M cameras:

• Ethernet TCP/IP / Modbus TCP interface kit
• EtherNet/IP interface kit
• Profinet kit

• Process imager Xi 1M
• Ethernet / PoE cable (1 m)
• USB cable (1m)
• Cable for output/input (1 m) incl. terminal block
• Mounting bracket with nut
• Software package optris PIX Connect
• Quick Start Guide
