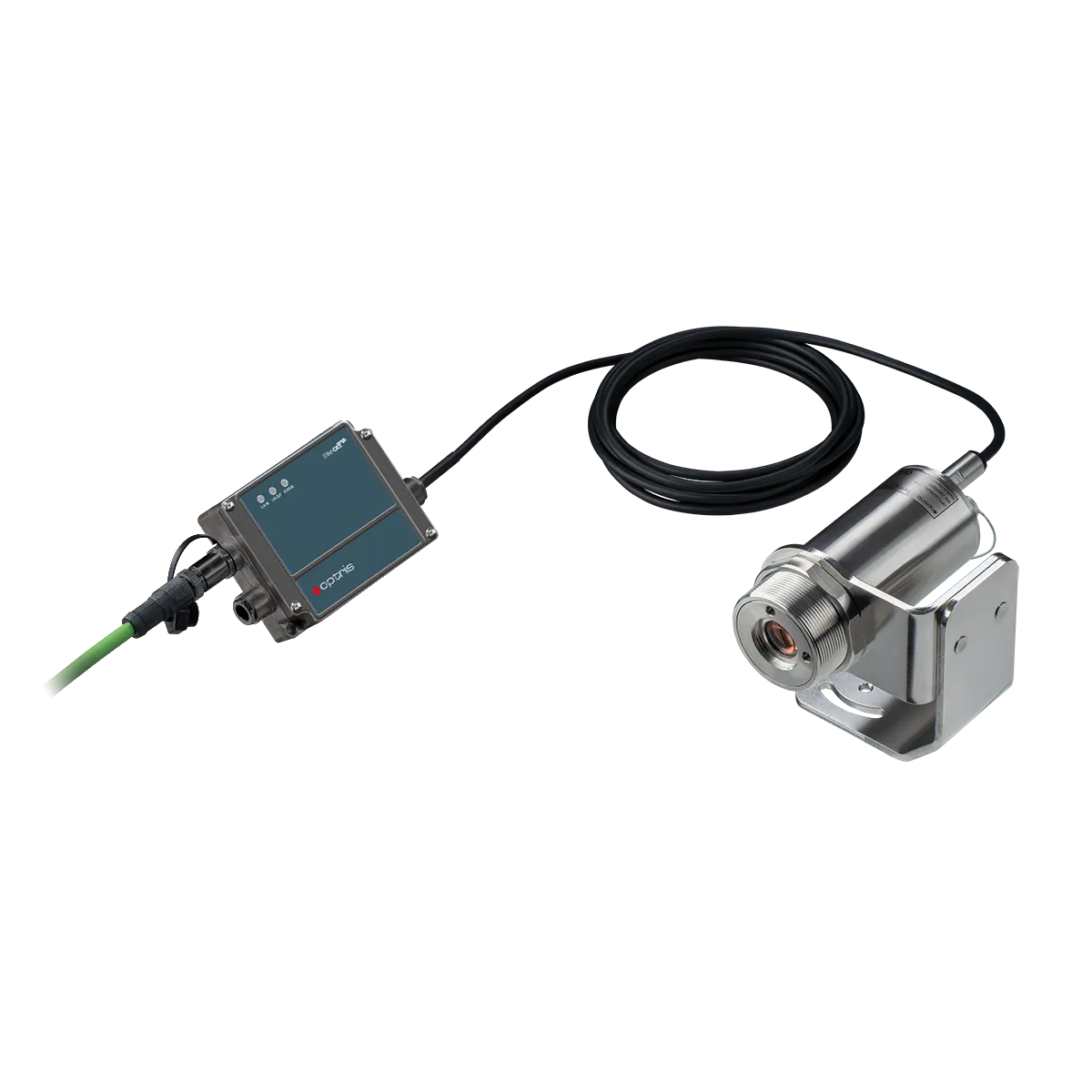

EtherCAT Interface for Xi ETH and CSvision

The Optris Xi CSvision EtherCAT Interface Kit is a specialized connectivity solution designed to facilitate seamless industrial communication for Optris Xi ETH and CSvision series infrared devices. By serving as a bridge between these advanced thermal imaging instruments and industrial automation systems, the kit enables reliable, high-speed data exchange within demanding production environments.

At the heart of the interface is a robust 2 x 4-pin M12 connector, which ensures secure and stable connections even under challenging conditions. The connector is rated IP67, providing protection against dust ingress and temporary immersion in water, making it well suited for harsh industrial settings where exposure to contaminants, moisture, or vibrations is common.

Communication is handled via the EtherCAT protocol, a widely adopted industrial Ethernet standard known for its real-time performance, deterministic behavior, and flexibility in automation architectures. This allows the interface to integrate smoothly into existing EtherCAT networks, ensuring low-latency transmission of measurement data and control signals.

The interface features onboard network settings that are stored directly on the board, simplifying configuration and enabling quick integration into industrial networks. This design eliminates the need for external configuration storage and reduces setup complexity during installation or device replacement.

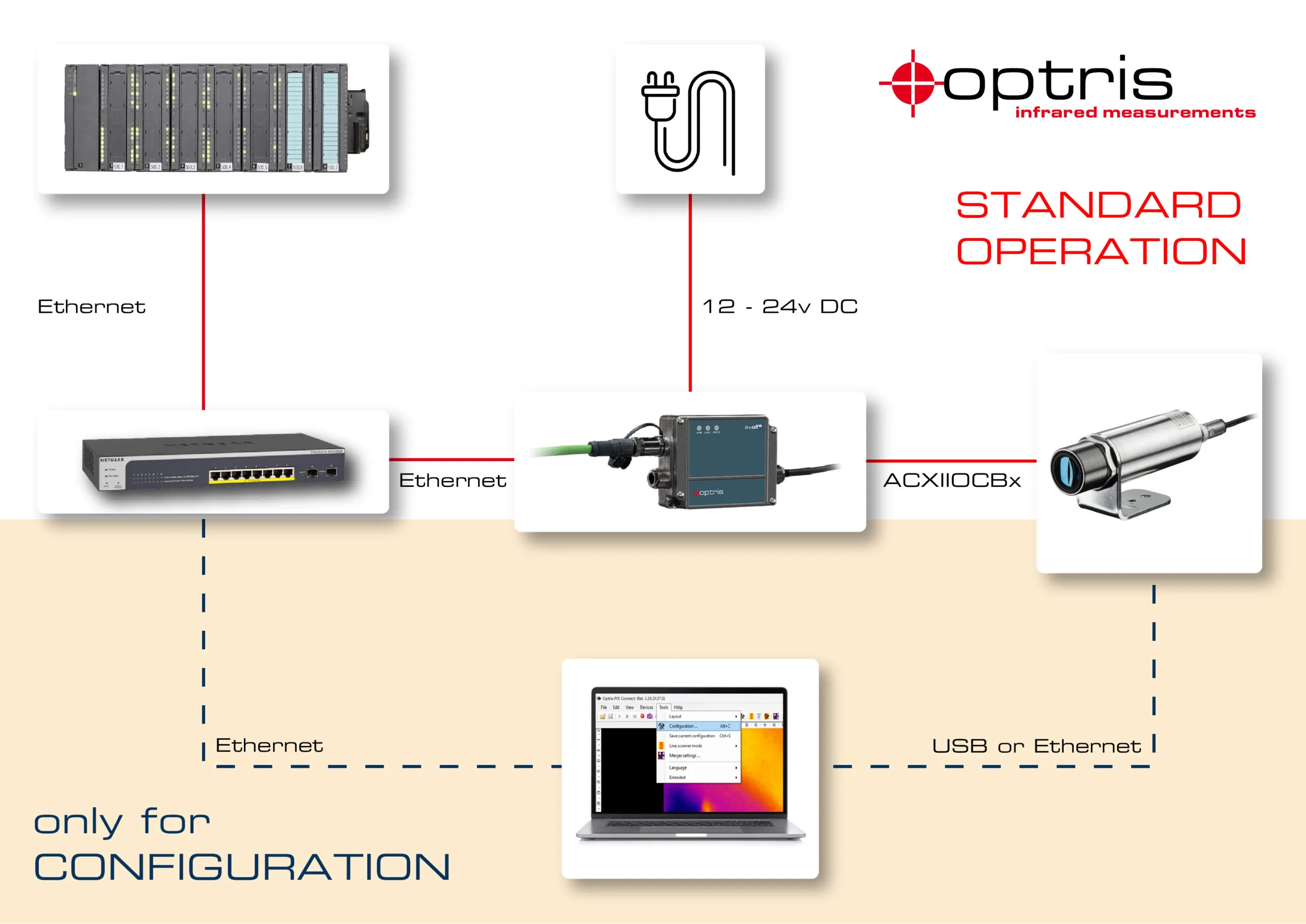

For configuration and management, users can rely on dedicated software tools provided by Optris. These tools offer a straightforward way to adjust parameters, monitor device status, and troubleshoot communication issues, thereby streamlining commissioning and maintenance tasks.

The device supports both static and DHCP IP addressing modes, giving integrators and end users the flexibility to adapt to different network infrastructures. Static IP mode is ideal for fixed installations with predefined addressing schemes, while DHCP mode simplifies deployment in dynamic or managed networks. Together, these features enhance the versatility and ease of use of the interface across a wide range of industrial applications, from process monitoring and quality control to predictive maintenance and automation.

General Specifications
Environmental rating: IP67 (Nema-4)
Operating temperature: 0 °C … 85 °C
Relative humidity: 10 – 95 %, non-condensing
Vibration: IEC 60068-2-6 (sinusoidal form), IEC 60068-2-64 (broadband noise)
Shock: IEC 60068-2-27 (25 G and 50 G)
Housing material: Steel
Weight: 440 g
Dimensions (H x W x D): 122 mm x 70 mm x 30 mm

Interface Board Characteristics
Port Protocol: EtherCAT
Transfer speed: up to 100Mbit/s full-duplex
Communication Port and Connection Type:
2x Ethernet 10/100 Base-T (RJ45) or 4-pin, industrial M12, D-coded connector

Electrical Parameters
Power supply: 5 … 30 VDC
Power consumption: < 0.7 W

Do I need additional cables?

Ethernet cables shall be ordered separately. You will get the chort 25cm adapters to RJ45 socket

How do I reset the interface?

The interface must be switched off. Press the SW button on the board and switch the box on in the meantime. The LED flashes red. Release the button the fifth time it flashes. The LED flashes green 5 times as confirmation.

Can I connect multiple devices to the same network?

Yes, but each of the devices must get an own ID.

Which connector is used?

The industrial interface has two 4-pin, M12, D-coded connectors. Alternatevly you can used the supplied adapters to RJ45 socket.

Where are the network settings stored?

The network settings are stored on the interface board, which communicates with the Optris devices via the serial interface. The network settings remain on the board when the Optris devices are exchanged.

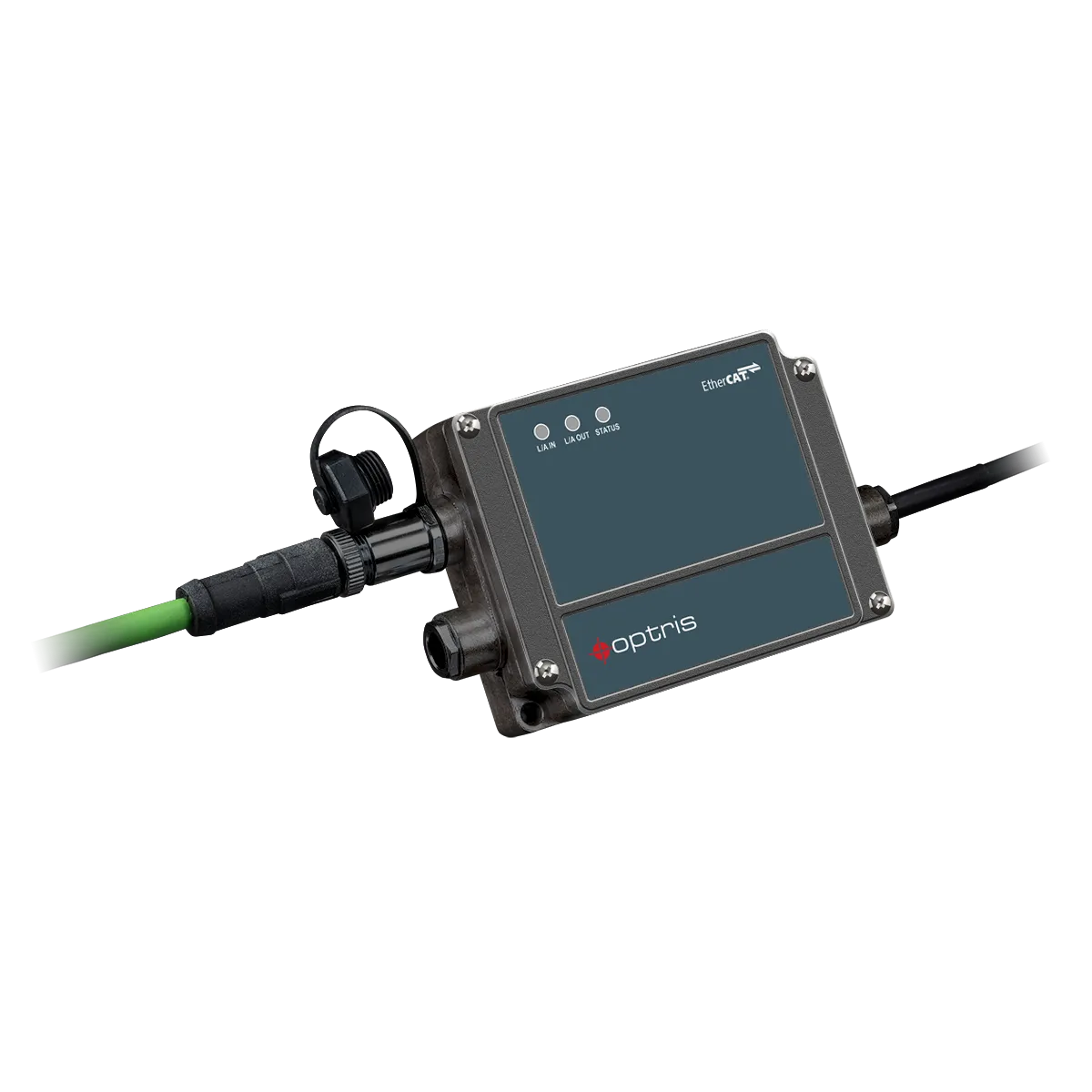

• Interface Box incl. wires and connector
• Y-Cable for EC IN and EC OUT signals with 4-pin M12 D-coded connectors
• 2 x Adapter cable 4-pin M12 D-coded connectors to RJ45 socket
