Hotspot Detection After Mineral Wool Curing

Real-time thermal inspection on the secondary line

Challenge

After the curing oven, rock mineral wool boards can show thermal non-uniformity across the width and along the line. Local hotspots may indicate uneven curing, binder buildup, airflow imbalance, or localized overheating. These defects are difficult to detect with contact sensors or single-point pyrometers, yet they can affect material integrity, downstream stability, and, in critical cases, fire safety performance.

Solution

An Optris radiometric thermal camera is installed above the secondary line after the curing oven to continuously monitor the full board surface in real time. The system detects hotspots, temperature gradients, and recurring thermal anomalies that may indicate curing defects or binder-related deposits. With PIX Connect software, profiles, trends, and alarm thresholds support early intervention and more stable process control.

Benefits

-Continuous real-time hotspot detection after the curing oven
Full-surface temperature measurement across the moving board
Early indication of uneven curing and localized overheating
Detection of binder buildup and thermal process anomalies
Non-contact inspection of fibrous insulation materials

Why post-curing hotspots are critical

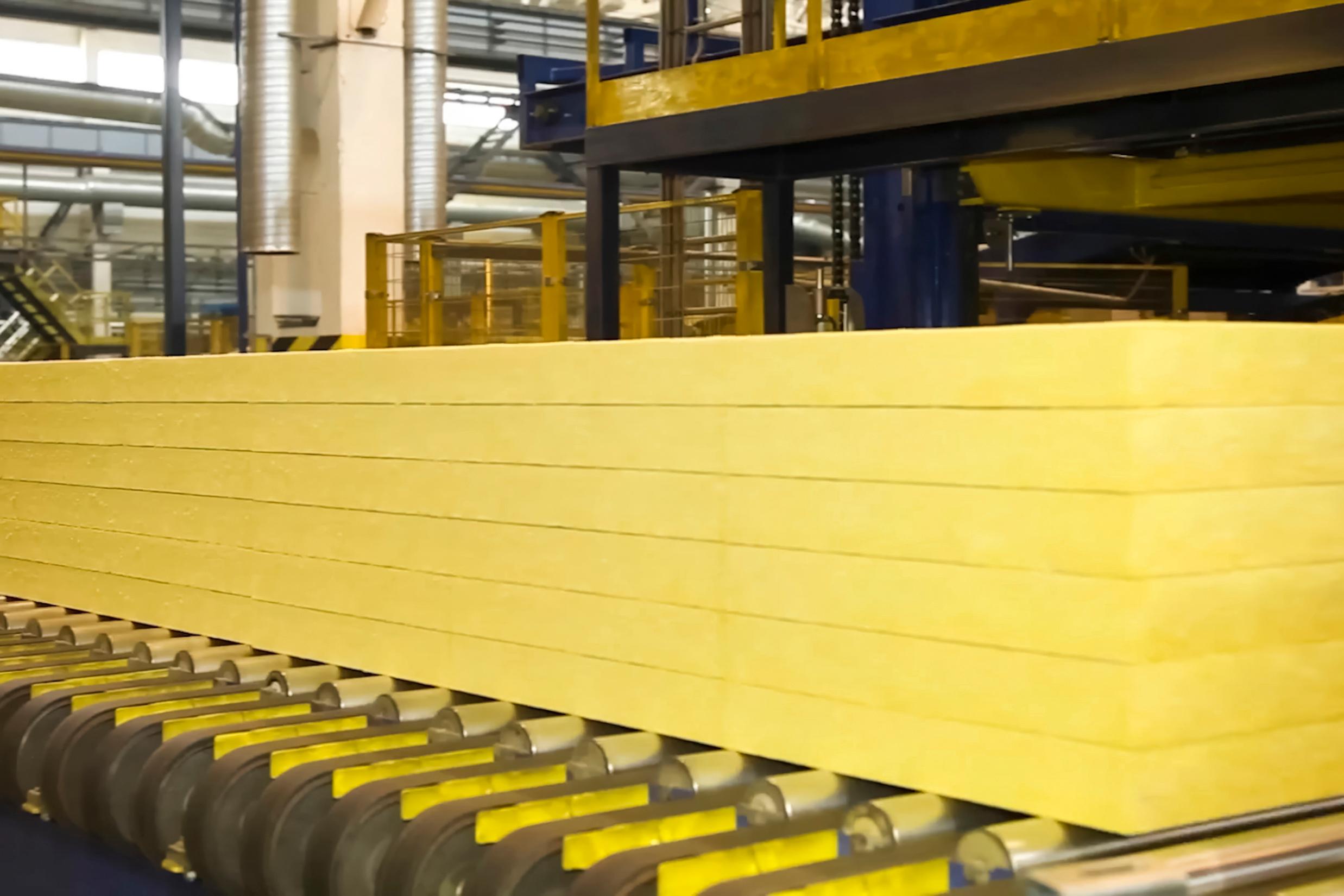

In rock mineral wool production, the curing oven is a decisive process step because it sets the binder and stabilizes the final board structure. Once the product exits the oven and moves into the secondary line, its surface temperature becomes a direct indicator of process quality. Ideally, the board should show a stable and repeatable thermal profile across its full width and along the production direction. In practice, however, hotspots, cold zones, and localized gradients can appear and indicate abnormal process conditions.

These anomalies are important because they often point to uneven curing, airflow imbalance, local overheating, or binder-related process disturbances. Binder buildup is especially critical. Since the binder is the organic fraction in the process, local accumulation on the product or on hot machine components can change heat absorption and retention, create recurring hotspots, and disturb curing uniformity. In more severe cases, such deposits can thermally degrade, char, or smolder and therefore increase the risk of ignition on hot equipment.

Conventional contact sensors are poorly suited to this application. The product is moving continuously, the surface is fibrous, and single-point measurement cannot represent the complete thermal condition of the board. A spot sensor may capture one value, but it cannot reveal whether localized overheating exists elsewhere. Reliable monitoring therefore requires continuous full-surface temperature measurement that makes both general trends and local defects visible in real time.

Full-surface thermal monitoring with Optris

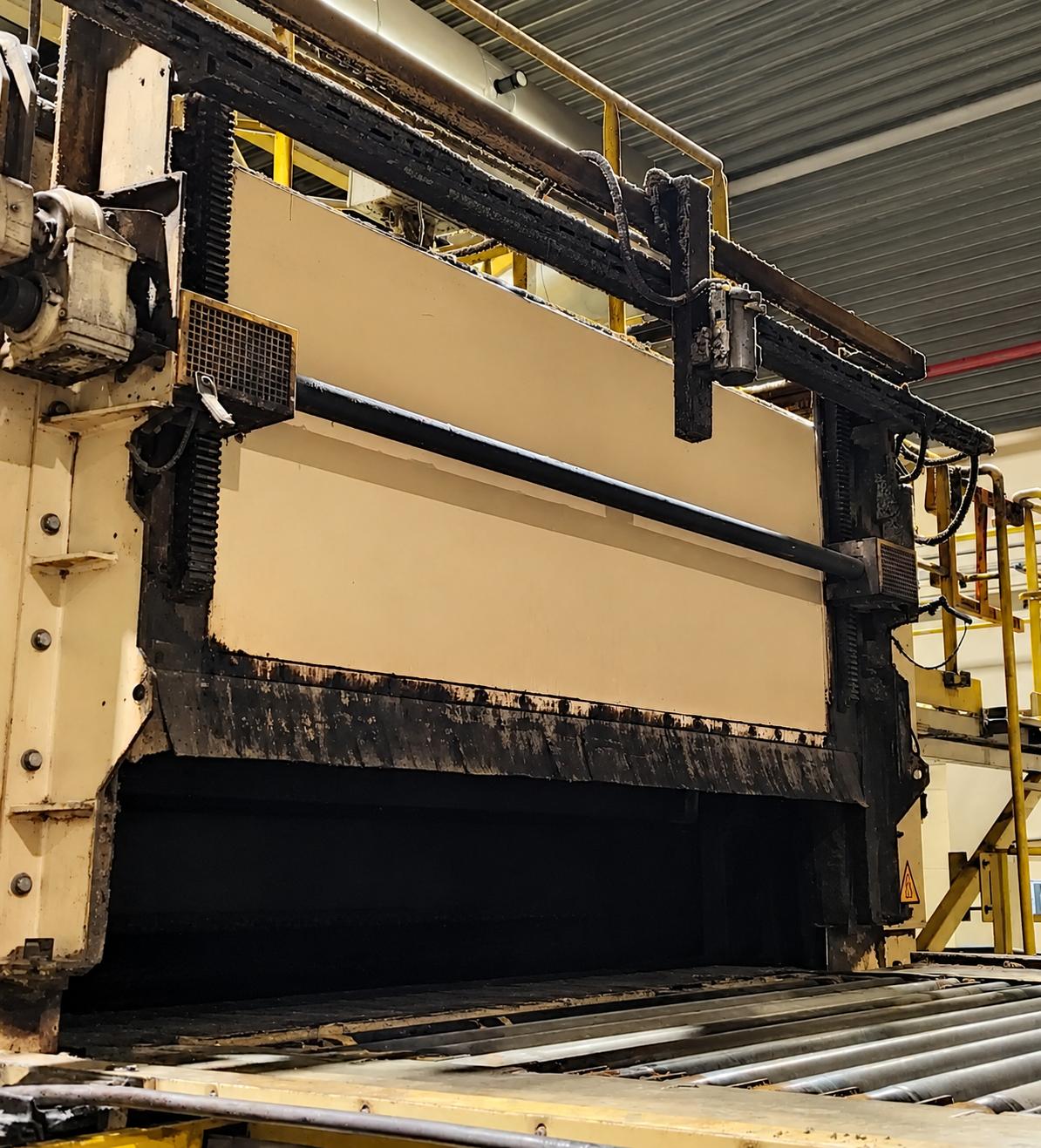

Thermal cameras are the ideal solution for detecting hotspots in insulation wool production. In this application, an Optris radiometric thermal camera is mounted above the secondary line directly after the curing oven to monitor the full surface temperature of the moving rock mineral wool board. As the material exits the curing section, the system continuously inspects the product in real time and identifies thermal anomalies such as uneven curing, localized overheating, or recurring hotspots associated with binder buildup.

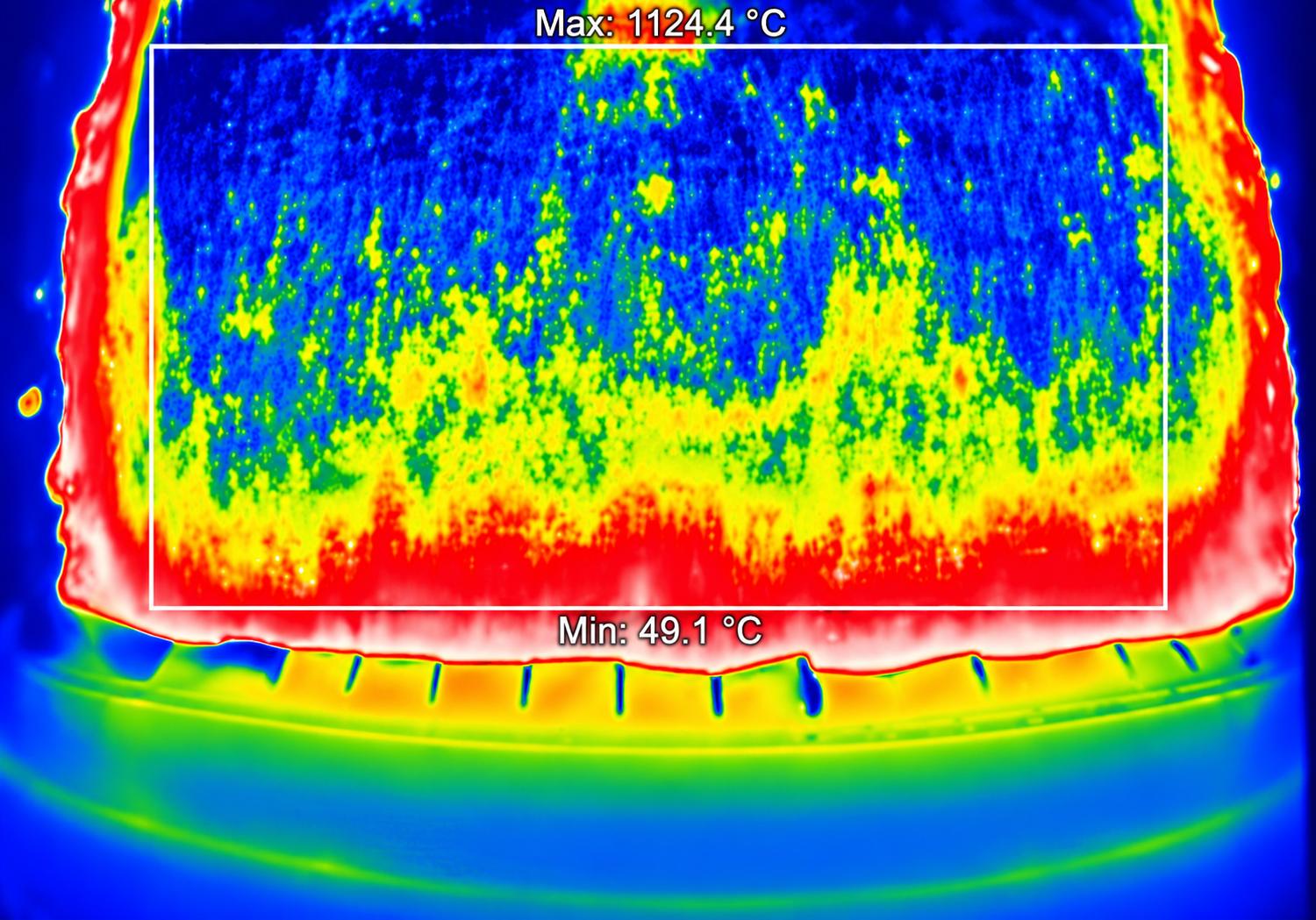

Because the camera is radiometric, every pixel delivers an absolute temperature value. This allows complete cross-profile analysis, longitudinal trend evaluation, and precise detection of local temperature peaks within one thermal image. Instead of relying on isolated measurement points, operators receive a full thermal map of the board surface. With PIX Connect software, measurement areas can be defined, temperature trends recorded, and alarm thresholds configured so that abnormal conditions are detected immediately.

The non-contact measurement principle is particularly important for mineral wool because the product surface is soft, fibrous, and continuously moving. The thermal camera does not disturb the process and still provides stable measurement data under industrial conditions. This makes it possible to identify process abnormalities early, including thermal patterns that may indicate product defects or developing deposits on machine components. As a result, the system functions as both a process-monitoring and defect-detection tool directly after curing.

Better control and earlier risk detection

The main benefit of using Optris after the curing oven is that previously hidden thermal conditions become visible immediately. Instead of relying on occasional checks or isolated spot measurements, production teams gain a continuous thermal image of every board on the secondary line. This makes it possible to identify hotspots, cold areas, and repeating thermal patterns at the moment they occur, rather than after defects have already propagated downstream.

This improves process control because temperature anomalies can be correlated directly with operating conditions such as oven settings, airflow distribution, line speed, or product format. If a hotspot repeatedly appears in the same position, it may indicate a specific machine-related cause such as deposit formation or local heat accumulation. This shortens troubleshooting and gives process engineers a more objective basis for targeted adjustments.

The system also strengthens quality assurance and operational safety. Uneven curing and binder-related thermal anomalies can be detected before they lead to inconsistent product properties. In addition, recurring hotspots linked to organic binder deposits can serve as an early warning sign for conditions that may develop into charring, smoldering, or ignition on hot equipment if left unaddressed.

Overall, Optris thermal cameras support more stable curing, more consistent board quality, earlier defect detection, and better control of thermal conditions that matter for both product integrity and process safety.
