CTlaser 3M

The Optris CTlaser 3M infrared thermometer stands out as a pinnacle of infrared temperature measurement technology, meticulously engineered for precise temperature readings in industries dealing with low metal temperatures and composite materials. This pyrometers temperature range of 50 °C to 1800 °C offers unmatched versatility across various industrial applications, including shiny metallic surfaces. The CTlaser 3M pyrometer adopts a two-piece design, featuring a separate electronics box that delivers advanced signal processing capabilities.

A standout feature of the CTlaser 3M is it’s incredibly short response time of just 1 millisecond, enabling the detection of fast-paced processes with exceptional accuracy. Additionally, the pyrometers capability to measure reliably and precisely on the smallest measuring fields, as tiny as 0.7 mm, underscores its high performance in capturing accurate temperature data even in challenging conditions. This precision is particularly vital in industries where slight temperature deviations can significantly impact product quality and process efficiency.

The CTlaser 3M’s short-wavelength spectral sensitivity minimizes measurement deviations resulting from changing emissivity, ensuring consistency and reliability in temperature readings, especially with materials prone to emissivity fluctuations. Equipped with an extended InGaAs detector operating at a wavelength of 2.3 μm, this advanced detector guarantees accurate temperature measurements across various materials, including metals, secondary metal processing, metal oxides, and ceramic materials.

The CTlaser 3M series offers different models with varying temperature ranges to cater to diverse industrial needs. The 3ML model covers temperatures from 50 °C to 800 °C, suitable for lower temperature measurements, while the 3MH model spans temperatures from 385 °C to 1600 °C, optimized for higher temperature requirements. The 3MH1 model extends the range from 490 °C to 1800 °C, providing engineers with flexibility to select the instrument that best suits their specific temperature measurement requirements.

Another notable feature of the CTlaser 3M series is its double laser aiming marks, providing precise aiming support and enhancing accuracy in temperature monitoring. Unlike conventional IR thermometers equipped with single lasers, the CTlaser 3M series utilizes an innovative double laser sighting system, ensuring unparalleled accuracy and confidence in temperature measurements.

The CTlaser 3M offers greater flexibility in installation and usage, with a wide range of analog and digital outputs, , including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, USB, RS485, RS232 interface, relay outputs (2 x optically isolated), Profibus DP, Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP. This extensive range of output options ensures seamless integration into various industrial processes and monitoring systems, even in demanding environments with ambient temperatures up to 85 °C.

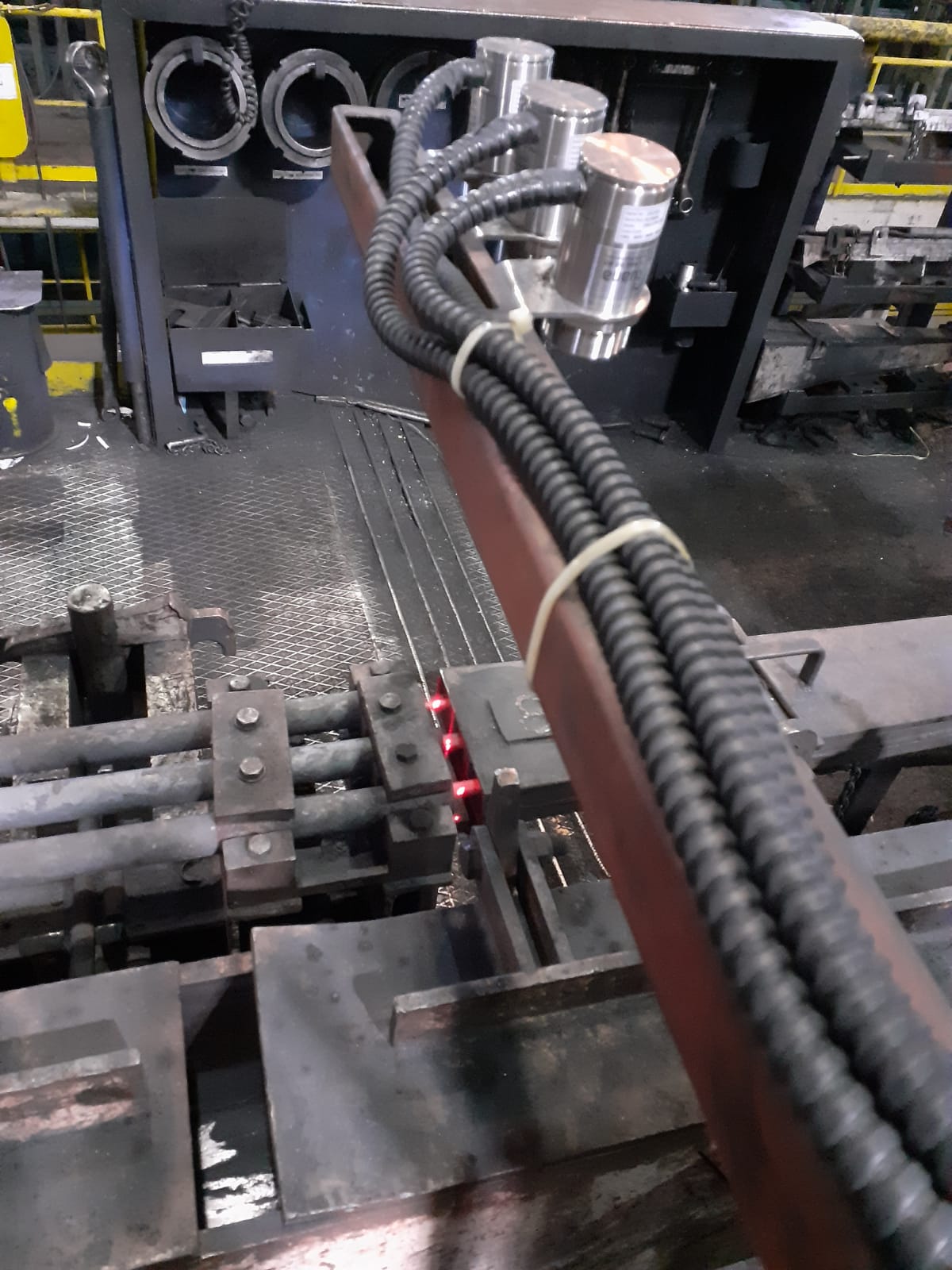

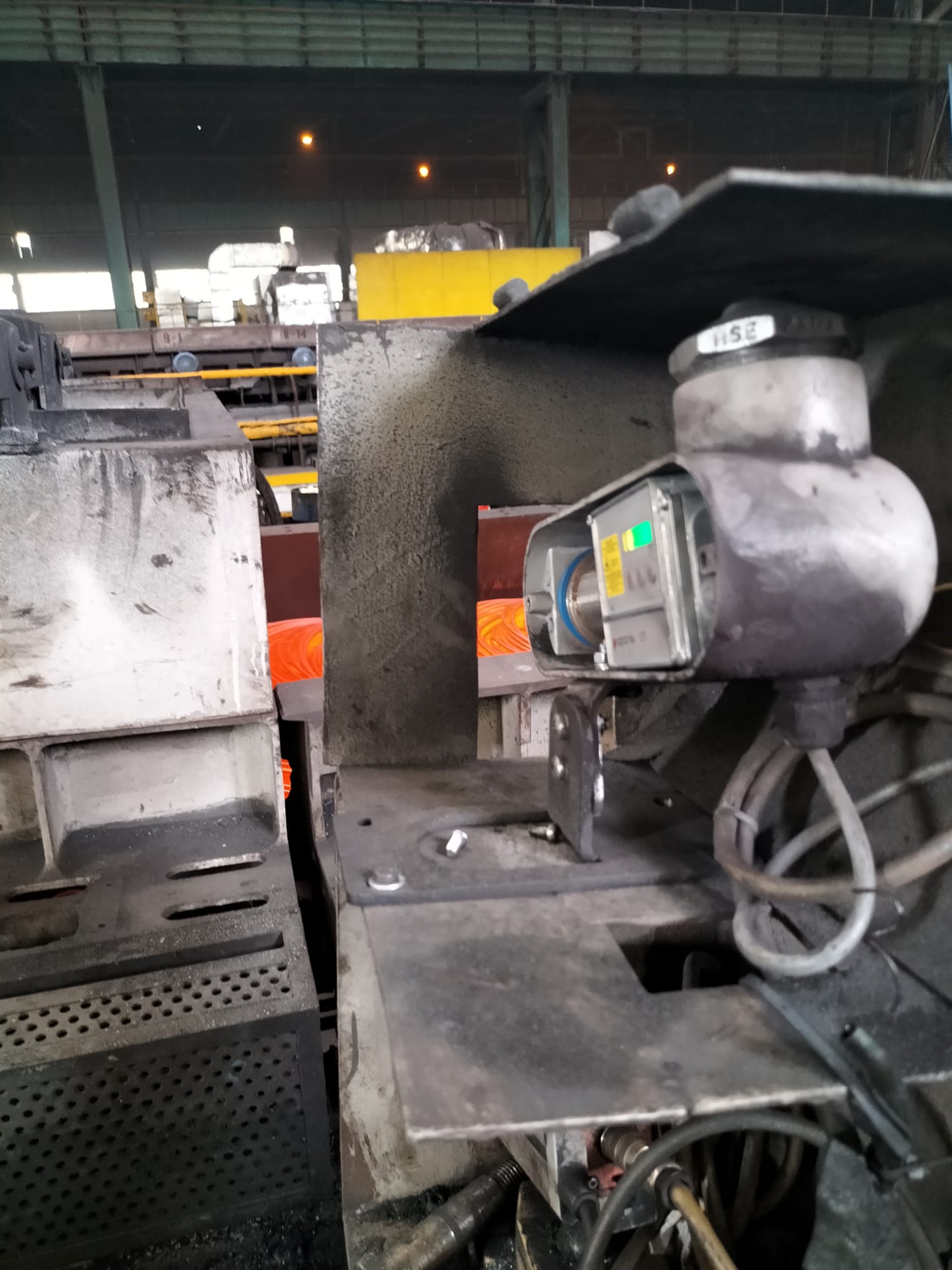

Enhanced with Optris accessories like air purging and mounting flanges, the CTlaser 3M pyrometer can be adapted to various manufacturing and process applications, expanding the infrared thermometers capabilities and ensuring compatibility with different environments and operating conditions. Calibration in Germany to meet regulation standards such as PTB or NIST, along with customization options like different cable sizes, further enhance the instrument’s accuracy, reliability, and flexibility to meet specific user requirements.

Optris provides comprehensive support for the CTlaser 3M series, including consultation on industrial applications and after-sales assistance, ensuring users can maximize the performance and utility of their pyrometers. With its precision, versatility, and reliability, the CTlaser 3M series sets a new standard for excellence in infrared thermometry, offering valuable temperature measurement solutions for diverse industrial environments.

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities. Compact Connect The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go). Google Play

What distance-to-spot size ratio is correct for the application?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. To prevent measuring errors, the object should completely fill out the field of view of the optics. Consequently, the spot should always be at least the same size as the object or should be smaller than that.

Can I change the sensor cable?

The sensing head cable can also be exchanged if necessary. To avoid influences on the accuracy use an exchange cable with the same wire profiles and specification like the original one

Can I pare the sensor head with another electronics box?

Yes, after exchanging a head the calibration code of the new head must be entered into the electronics. The calibration code is fixed on a label on the head. Do not remove this label or note the code. The code is needed if the electronic must be exchanged.

How far can I position the CTlaser 3M from the target?

The measuring object’s size and the infrared thermometers optical resolution determine the maximum distance between the sensing head and the measuring object. The object should fill out the optics’ field of view to prevent measuring deviations. Consequently, the spot should always be at least the same size as the object or smaller. The spot size refers to 90% of the radiation energy.

How can I improve the noise amplitude of the sensor?

In the CT models, the head cable must not be moved during the measurement. Use shielded cables only. The sensor shield has to be grounded. Avoid ground loops and related signal interferences in industrial environments. It might be necessary to interrupt the ground connections inside the electronics box. To do this, switch the jumper inside the electronics box to another position. Review the manual.

How do I aim with a CTlaser 3M?

The infrared sensor has an integrated double laser aiming, which helps align the sensor. The measuring spot is located within the two laser points. At the focus point of the appropriate optics, both lasers cross and merge as one dot, marking the minimum spot. The two laser points are for orientation only.

Is the laser dangerous?

The pyrometers laser is a class 2 laser with less than 1mW in the wavelength range of 500 nm to 650nm, according to EN 60825 1:2014. Do not point the laser directly at the eyes of persons or animals! Do not stare into the laser beam. Avoid indirect exposure via reflective surfaces.

Does the laser automatically switch off?

At ambient temperatures >50 °C the laser will be switched off automatically. The laser should only be used for sighting and positioning of the sensor. A permanent use of the laser can reduce the lifetime of the laser diodes and might heat up the sensor.

Can I trigger the laser externally?

Yes, but the supply line for the sighting laser must be led via a switch or pushbutton, which has to be installed max 2m away from installation site of the sensor for safety purposes. The laser can be activated/ deactivated via this, by the user on site to be installed switch, or via the software.

What is required to install the CTlaser infrared sensor in the CoolingJacket Advanced?

The connector version is needed to install the CTlaser sensor in the CoolingJacket Advanced.

Can you connect two pyrometers to the same computer?

Yes , this is possible. For using the software CompactPlusConnect or CompactConnect (depends on which type of pyrometers you are using) you have to create different instances of the software. You can connect two pyrometers via the USB ports. It is also possible to connect the two pyrometers with a RS485 interface. You can connect the first pyrometer via the provided RS485-USB adapter to the PC.

• CTlaser 3M with 3m cable
• 1x mounting nut
• 1x mounting bracket
• CTlaser Manual
