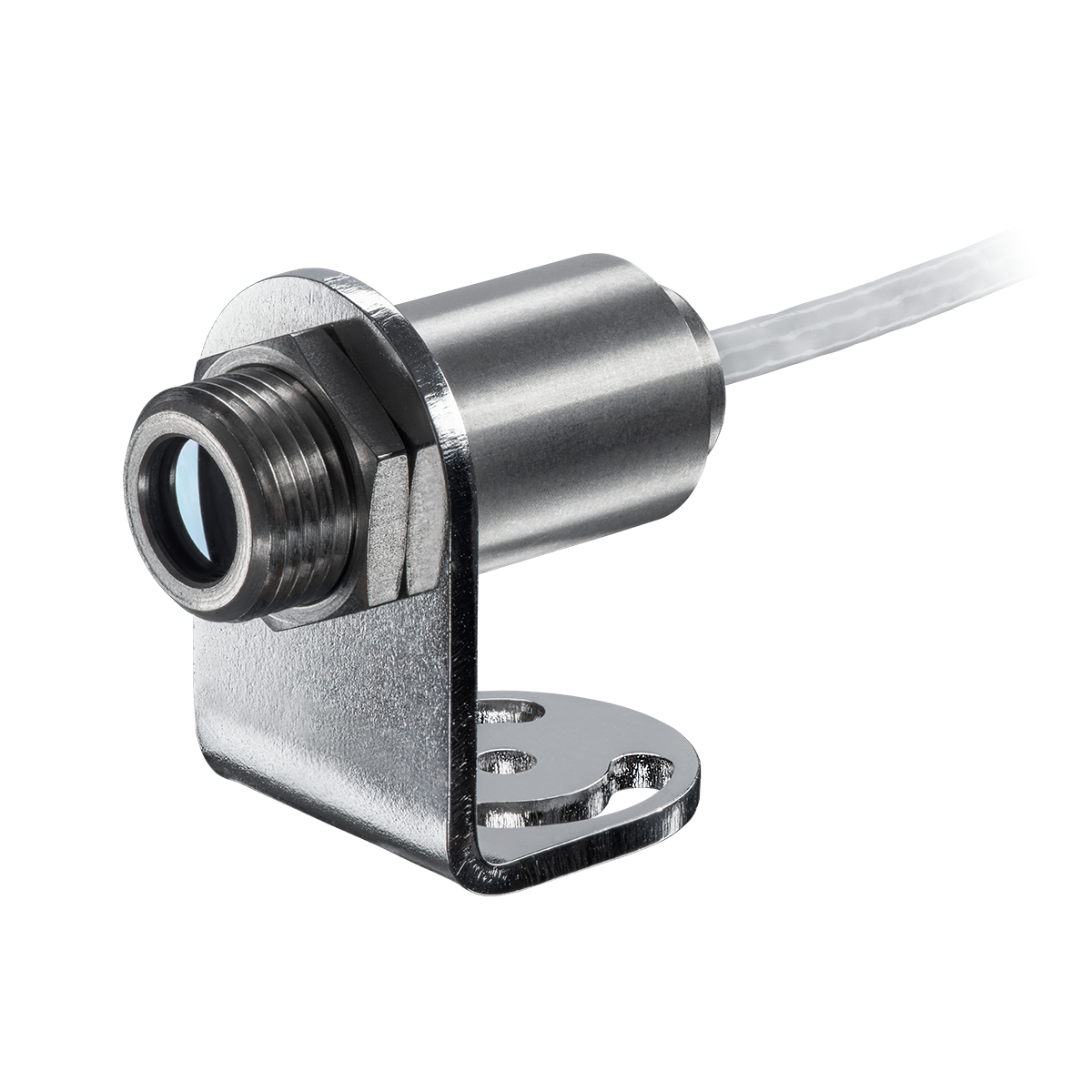

Mounting bracket, adjustable in one axis

The Mounting Bracket for CS LT, CSmicro, and CT measuring heads with an M12 thread allows secure and insulated attachment to your process setup. Made from durable stainless steel, this bracket offers one-axis adjustability for precise positioning. Designed for stationary use, it ensures compatibility with various mounting options, making it an essential accessory for stable and accurate infrared thermometer installation.

• Compatible to most compact pyrometers
• Adjustable on one axis
• Made in stainless steel with two Teflon spacers

General Specifications

• Size: 30 x 22 x 20 mm, M12x1
• Thickness of metal sheet: 2 mm
• Material: stainless steel, Teflon
• Operating temperature range: Same as the sensing head

Which sensing heads are possible to mount to the mounting bracket?

You can mount all CS LT, CSmicro, and CT sensing heads to the mounting bracket, which feature the M12 thread design.

What materials is the Mounting Bracket made of?

The Mounting Bracket is made of high-quality stainless steel, type 1.4301.

Is the Mounting Bracket adjustable?

Yes, the bracket is adjustable on one axis. The bracket is secured with two screws, of which one is mounted in a slit so that the infrared camera can rotate horizontally.

Can the mounting bracket be used in outdoor environments?

Yes, the bracket’s stainless steel design makes it suitable for use in both indoor and outdoor industrial environments.

• 1 x Mounting bracket
• 2 x Insulating ring
