Air Purge Laminar for CoolingJacket Advanced

Ensuring Clear Optics and Accurate Infrared Measurements

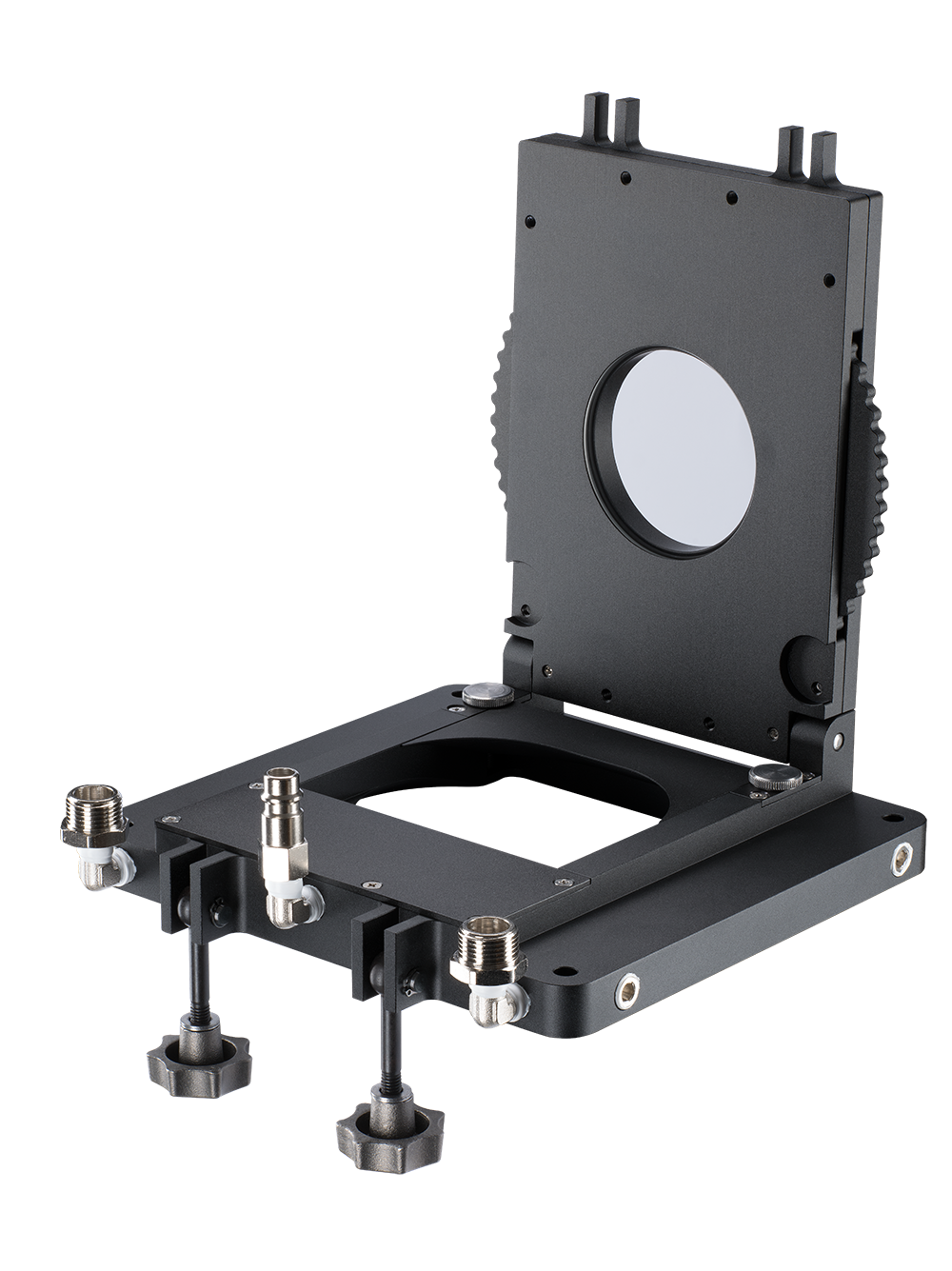

Optris air purge accessory for laminar optics, open front view for sensor protection
Air Purge Laminar for CoolingJacket Advanced Air Purge Laminar for CoolingJacket Advanced

The Laminar Air Purge for Cooling Jacket improves clear optical paths and ensures precise temperature measurements by keeping the infrared sensor lens clean in tough industrial environments. It effectively protects the lens from dust, smoke, and fumes. Made of anodized aluminum, it includes a protective window designed for the IR sensor’s spectral sensitivity. Its unique laminar airflow design creates a consistent, steady air stream that stops dust from settling on the lens edges. Unlike other air purges, it offers better protection and reliability for infrared measurements. There is also a special version for line scanners, which has a smaller opening to reduce the chance of cracks from debris, ensuring long-lasting performance and durability.

  • Protects from dust, smoke, fumes
  • Compatible to the Cooling Jacket Advanced
  • Focusable from the outside
  • Easy maintenance due to folding mechanism
  • Laminar airflow design ensures no dust accumulates on the lens

590,00€

Add to Quote
Product Description

The Laminar Air Purge for Cooling Jacket Advanced protects the infrared sensor lens in rugged industrial environments, ensuring clear optical paths. It shields from dust, smoke, and fumes, crucial for accurate temperature measurements. Made from anodized aluminum, it includes a protective window tailored to the IR sensor’s spectral sensitivity. Its unique laminar airflow prevents dust accumulation, ensuring reliability in infrared measurements.

Specification

General Specification

  • Operating temperature: 0 … up to 315 °C (with water cooling)
  • Storage temperature range: 0 … 80 °C
  • Environmental rating: IP65
  • Relative humidity: 10 – 95 %, non-condensing
  • Material: Anodized aluminum
  • Weight: 1.9 kg
  • Size: 200 x 189 x 43 mm

Air purge

  • Airflow: 40-120 l/min
  • Absolute pressure: 1.1-10.0 bar
  • Condition: Use oil-free, technically clean air only
  • Coupling plug for the air: NW7,2-G1-8-AG MSV
Downloads

STEP file

STEP FILE

ZIP - 2.32 MB

ACCJAAPLS AirPurge Laminar Standard

Complete the form to download the file

    Fields marked * are required




    STEP FILE

    ZIP - 2.32 MB

    ACCJAAPLL AirPurge Laminar Linescan

    Complete the form to download the file

      Fields marked * are required




      Datasheet

      Manual

      FAQs
      Scope of Supply

      Laminar Air Purge is an extra accessory for the Cooling Jacket Advanced and it is supplied individually.
      The Protective window has to be ordered separately.
