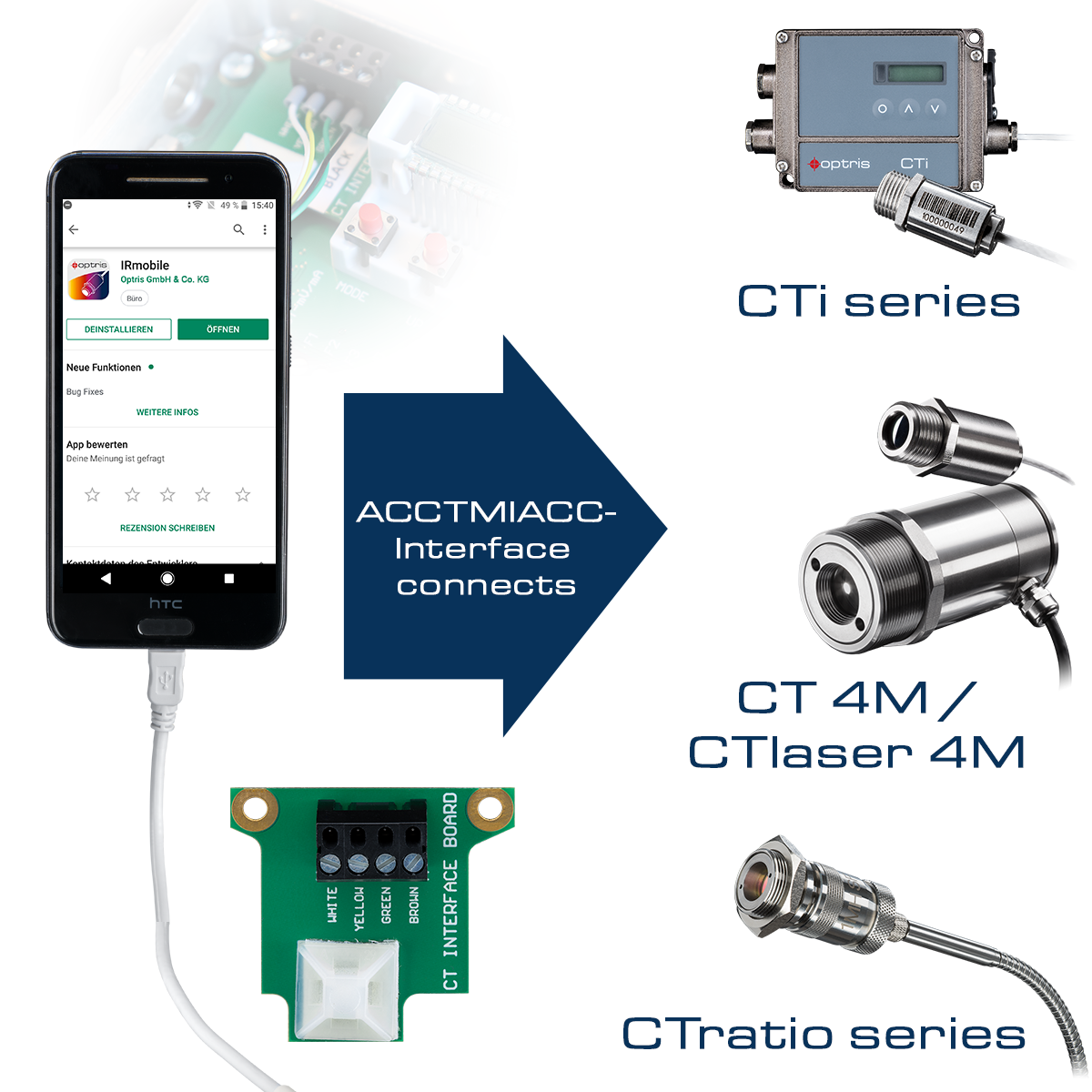

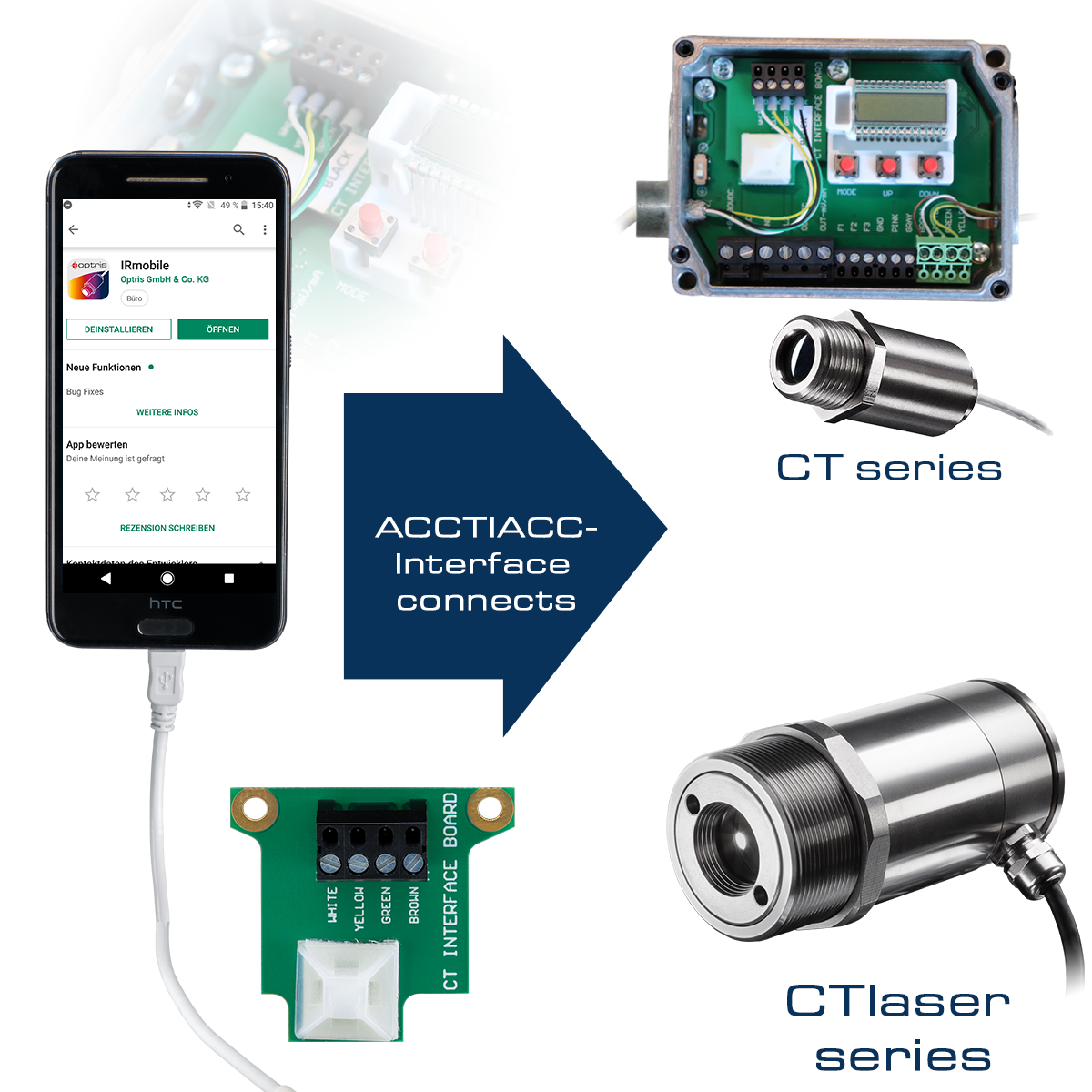

USB-Kit for Optris CTi, CT, CTlaser and CTratio pyrometers

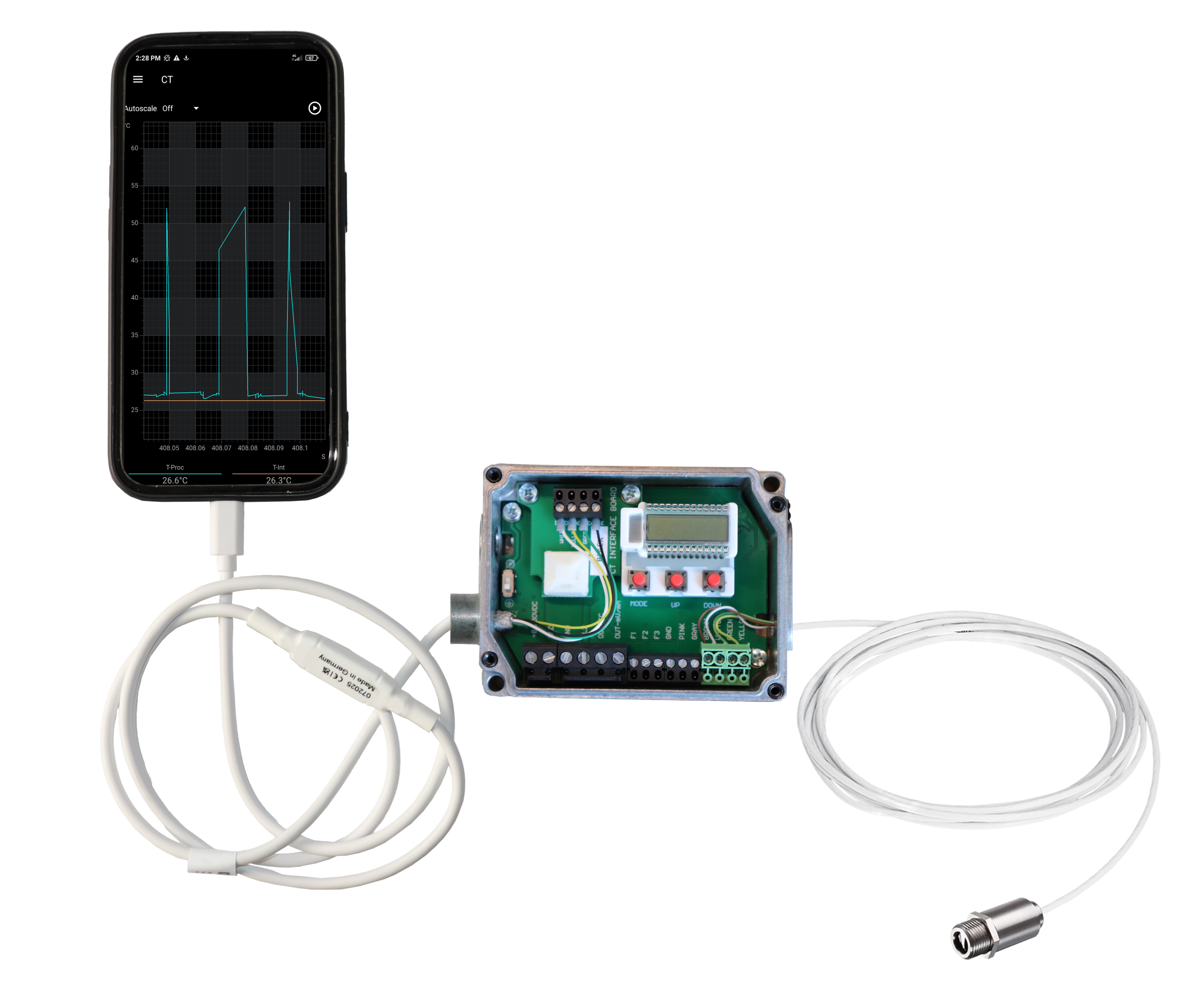

The IR App Connector for Optris CTi, CT, CTlaser and CTratio pyrometers is a versatile and essential accessory designed to enhance the functionality of the pyrometers infrared temperature measurement system for industrial applications. This innovative connector enables seamless connectivity between the pyrometer and various devices, including mobile phones, computers, and laptops, significantly improving usability and accessibility.
Constructed to support the robust requirements of industrial environments, the IR App Connector facilitates a direct connection to the IR mobile app, allowing users to monitor and control temperature measurements remotely via their smartphones. This mobile app integration provides real-time data visualization, alerts, and analytics, making it easier for technicians and engineers to manage temperature monitoring tasks on the go.
In addition to mobile connectivity, the IR App Connector also interfaces with computers and laptops, enabling the use of the powerful CT/CTi software, Compact Connect or CompactPlus Connect. This software offers comprehensive tools for data logging, analysis, and reporting, as well as advanced configuration options for the CT/CTi system. With CompactPlus Connect, users can perform detailed temperature analysis, set up custom measurement parameters, and generate in-depth reports to optimize industrial processes and ensure quality control.

General Specifications

• Environmental rating: IP67 (Nema-4)
• Operating temperature: 0 °C … 50 °C
• Relative humidity: 10 – 95 %, non-condensing
• Length: 450mm
• Jacket Material: PVC (Polyvinyl Chloride)
• Color: white

Interface Specifications

• Cable Type: USB 2.0
• Connector 1: USB-C plug/ adapter to USB-A
• Connector 2: Optris 5-pin cable for terminal block

Does the IRmobile exist on Apple phones?

Apple iPhones do not support the required USB-OTG (On The Go) interface and are therefore not supported.

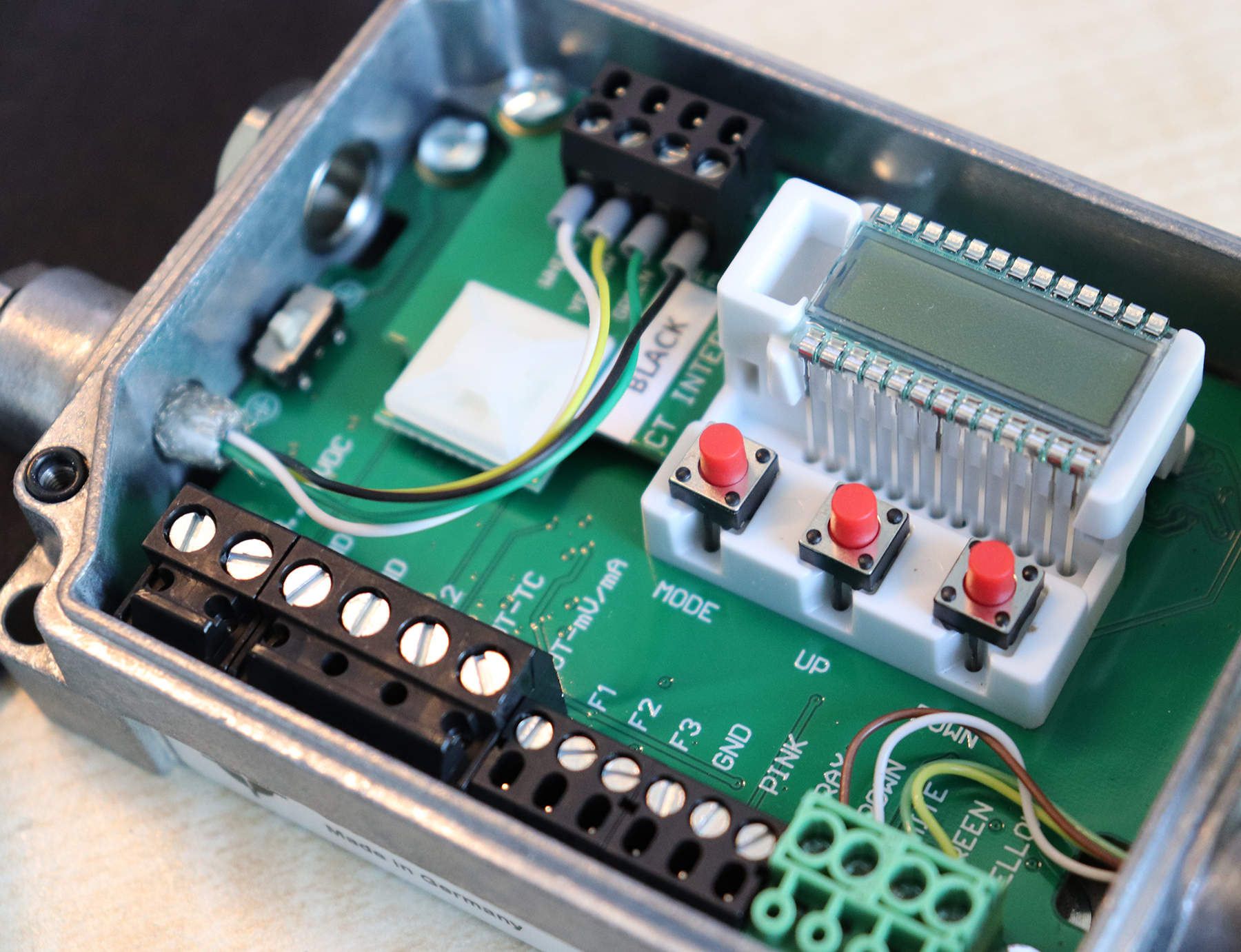

How do I connect the cable?

Please review the manual of the specific pyrometer for the correct connection.

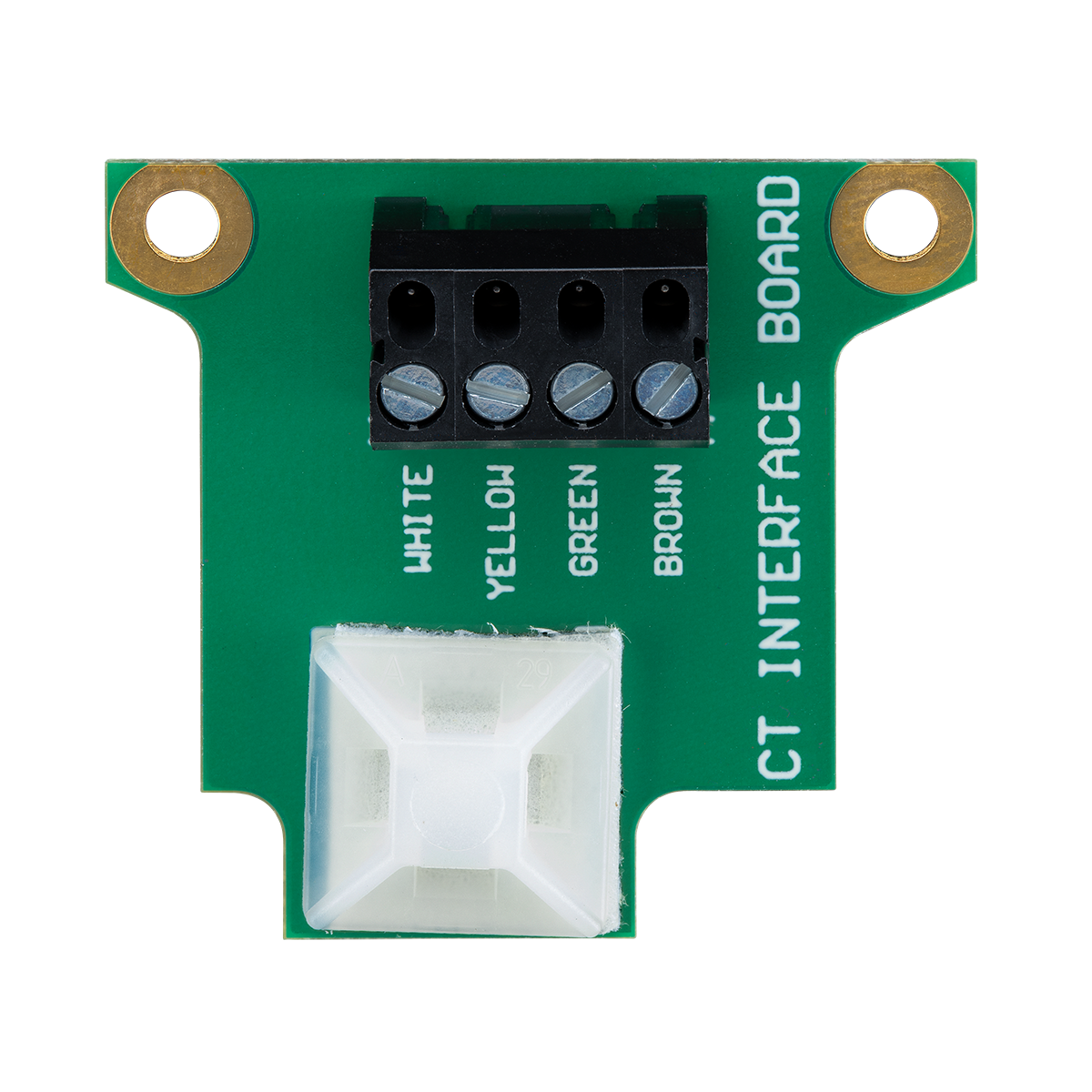

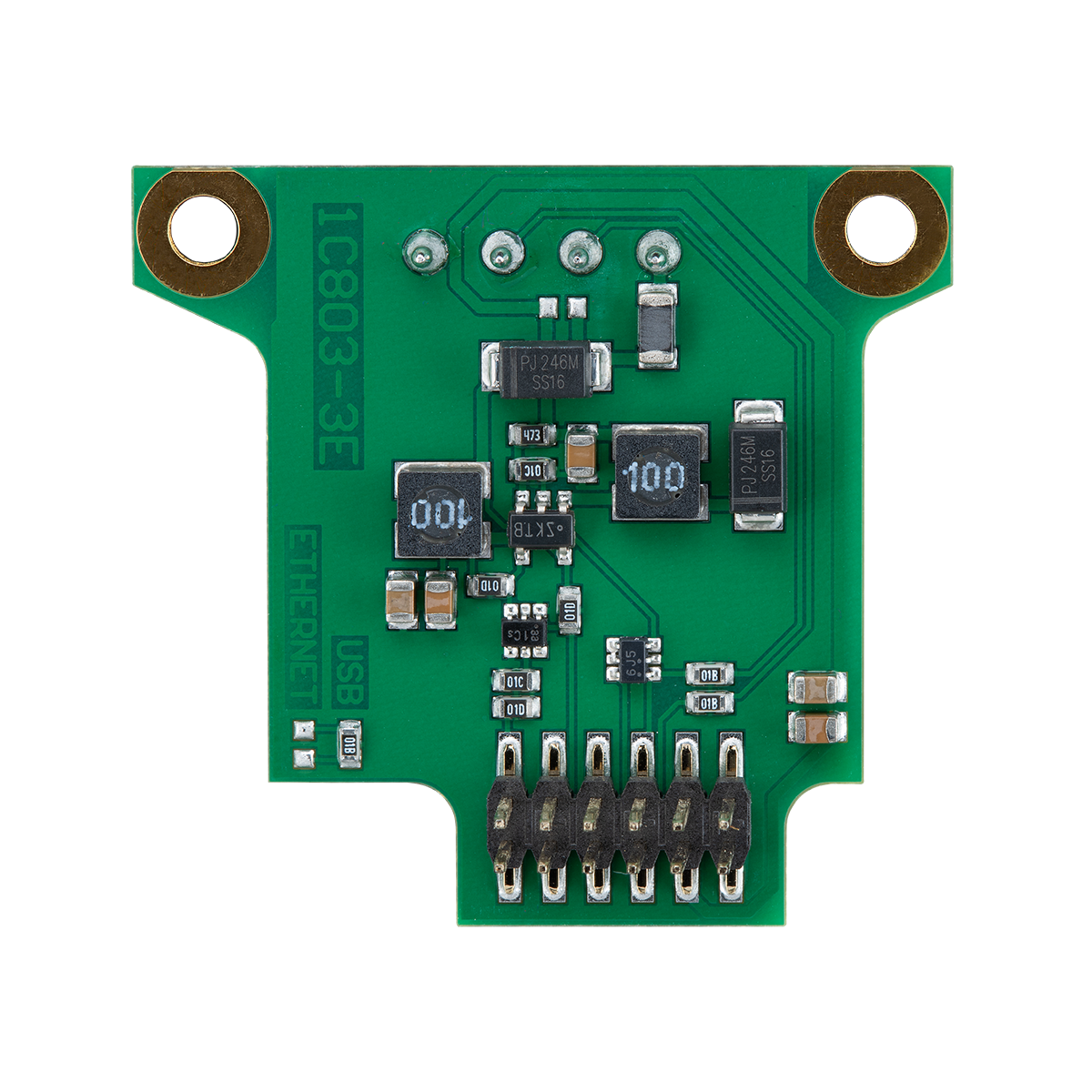

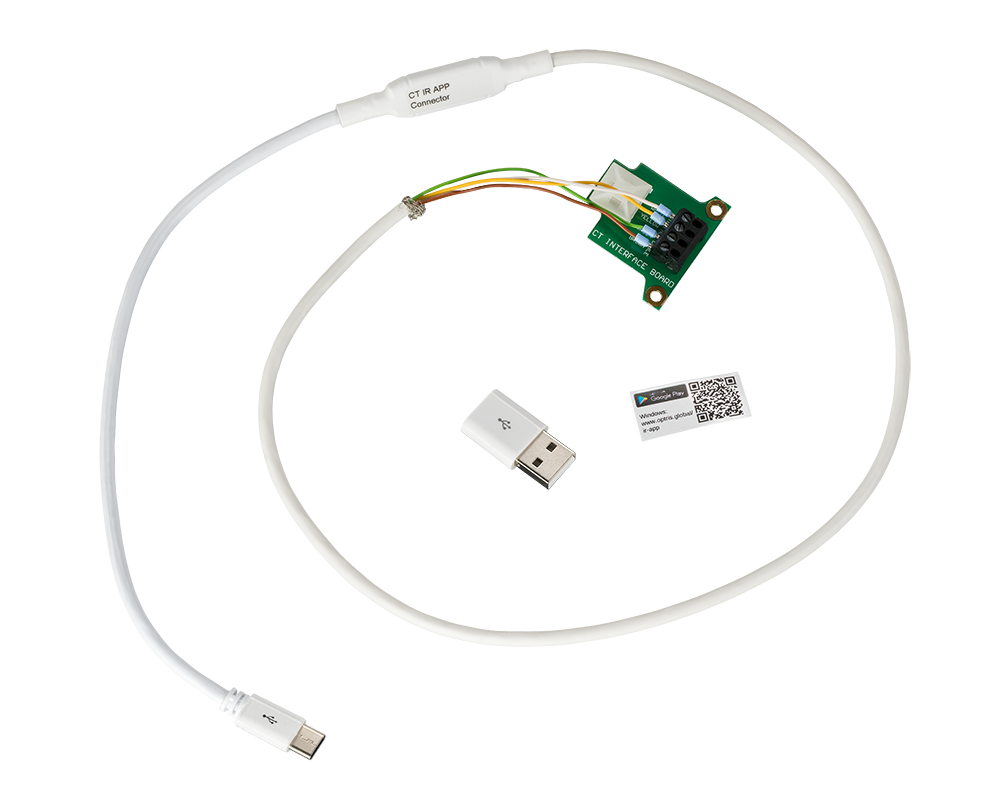

• Prewired USB-Board with cable and USB-C connector
• USB-A adapter
• 2 x lens screws
• Cable ties
